Custom Engineered Barski Pump Station
Product Overview
Barski Industries designs and manufactures custom-engineered Fiberglass Reinforced Plastic (FRP) lift stations and valve vaults for municipal, commercial, and industrial wastewater infrastructure. FRP construction delivers long service life (100+ years), complete corrosion resistance, and leak-free operation—providing a proven alternative to traditional concrete stations.
Barski integrates Xylem / Flygt submersible pumps and controls into our FRP pump stations, ensuring full compatibility, dependable performance, and long-term reliability in both wastewater and stormwater applications.
Each custom pump station is manufactured to project-specific requirements, using advanced engineering and filament-wound FRP construction for superior structural strength and durability. Barski stations can be installed as new systems or as slip-in replacements for deteriorating infrastructure, minimizing excavation, reducing downtime, and maintaining efficient site operations.
Key Features
Custom Fabrication
Diameters up to 12.5’ and depths exceeding 50’, engineered to site-specific hydraulic and geotechnical conditions.
Design Life
Leak-Free Structure
Low Maintenance
Confined Space Reduction
Structural Integrity
Hydraulic Optimization
Rapid Installation

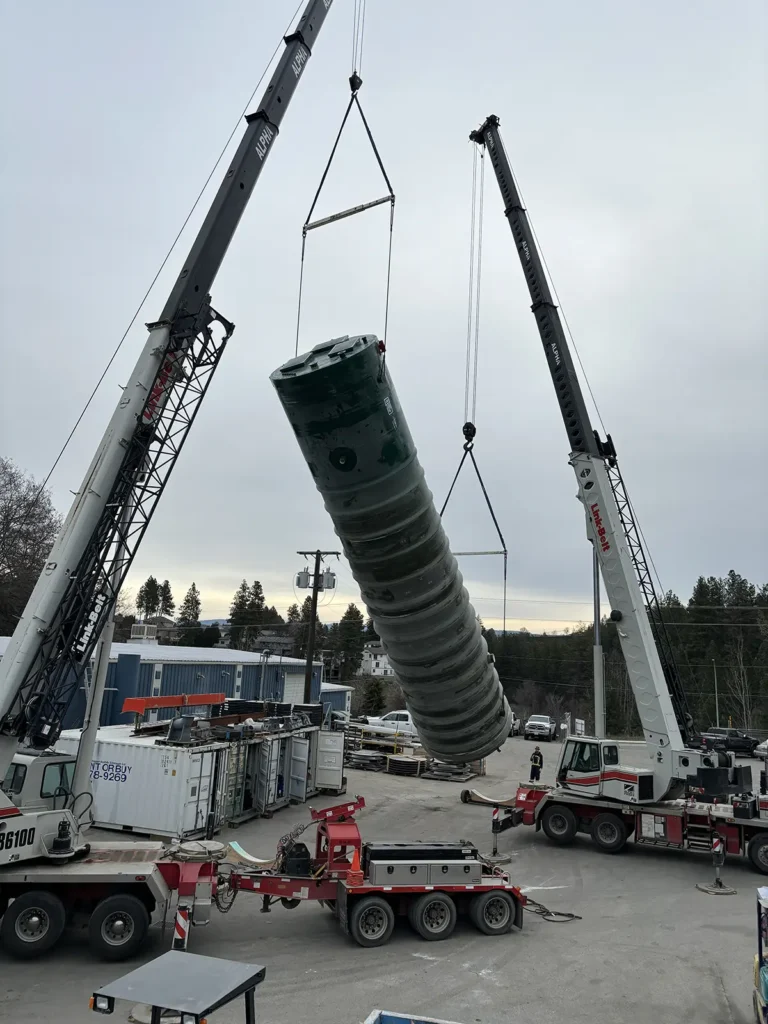

Delivered as a complete, factory-assembled unit. Only pumps, chains, and electrical components are installed on-site.
Internal Piping
Pump Configurations
Valve Vault Options
Anchoring / Anti-Floatation
Positioning lugs to anchor the station in place, reinforced external ribs, and concrete base pad designs resist uplift in high water tables.
Applications
Barski custom-engineered pump stations serve a wide range of industries and applications:
Municipal Wastewater & Stormwater
Industrial Facilities
Leachate / Aggressive Chemical Handling
Retrofit & Replacement Projects
Remote & Harsh Environments
Case Studies & Proven Performance
- Replace failing concrete wells with long-term FRP slip-in retrofits
- Reduce municipal installation time and dewatering costs
- Withstand high groundwater in coastal and floodplain sites
- Improve maintenance safety with external valve vaults
Explore our case studies to see how Barski pump stations deliver long-term reliability and value.
Technical Specifications
Construction & Materials
- Filament-wound Fiberglass Reinforced Plastic (FRP) with integrated liner and structural laminate
- Smooth white gelcoat interior for easy inspection and cleaning
- UV-resistant polyurethane exterior coating
- Specialty resin liners available for leachate and aggressive chemicals
Size and Capacity
- Diameters: 4’ to 12.5’
- Depths: up to 50’+
- Pump configurations: simplex, duplex, triplex, quadplex
Structural Performance
- Designed for full hydrostatic head when empty
- H-20 traffic-rated tops available
- Anti-floatation: reinforced external ribs, second-pour concrete ballast
- Custom hydraulic benching (TOP base and vortex-reduction designs)
Nozzles & Piping
- FRP nozzles with laminated, machined, or flanged ends (2″, 3″, 4″, 6″+)
- FRP discharge piping rated to 150 PSI (25-year warranty)
- Optional 316 stainless steel piping (2″, 3″, 4″, 6″+) (5-year warranty)
Valve Chambers
- Attached FRP valve chambers (above- or below-grade)
- Separate FRP valve vaults available
- Options for side-mounted configurations
- Above ground attached valve chambers do not require any confined space as they service the station from grade
Mechanical & Hydraulic Options
- Trash baskets on guide rails
- Knife gate valves on inlets with operator extensions
- Pump-out and bypass connections
- Flow meters, mixers, and odor-control provisions
Access & Safety
- Intermediate FRP platforms with removable hatches
- 316 stainless steel guide rails
- Explosion-proof or intrinsically safe lighting
- Handrails, fall protection, and non-slip access surfaces
Environmental & Climate Options
- FRP-encapsulated insulation for permafrost and cold climates
Ventilation
- FRP or stainless steel goosenecks and venting systems
Controls & Monitoring
- Fully compatible with Flygt submersible pumps
- SCADA-ready panels and remote monitoring integration
- Level regulators, transducers, and stilling wells with surface access
Warranty
- 25-Year warranty on all FRP components
Frequently asked questions
Have questions? We’re here to help.
What sizes of FRP stations does Barski offer?
Does Barski offer custom-engineered FRP stations?
Yes. For diameters above 6 ft or depths beyond standard TOP ranges, Barski supplies fully custom-engineered FRP stations.
- Applications: Larger municipal or industrial flows, complex pumping arrangements, or projects requiring non-standard layouts.
- Features: Options include increased wet well storage, specialized hydraulic benching, large-diameter piping, integrated mezzanine platforms, custom valve vaults, and flexible inlet/outlet orientations.
Can Barski provide stamped engineering drawings?
Yes. In collaboration with professional engineering firms such as March Consulting, Barski provides site-specific stamped drawings for:
- FRP station structural design
- Reinforced concrete base slab design
- H-20 and higher traffic-rated top slabs
Do I need a geotechnical report?
A geotechnical report is required for site-specific stamped base-slab design. Data on groundwater depth, soil bearing capacity, and buoyancy allows accurate foundation engineering. If a report is not available, Barski can design to a conservative default case, but this may increase foundation requirements.
What is the typical lead time after design approval?
Standard lead time is 8–10 weeks from final design approval. Larger, multi-section, highly customized systems, or request for special non-stocked parts may require additional time.
